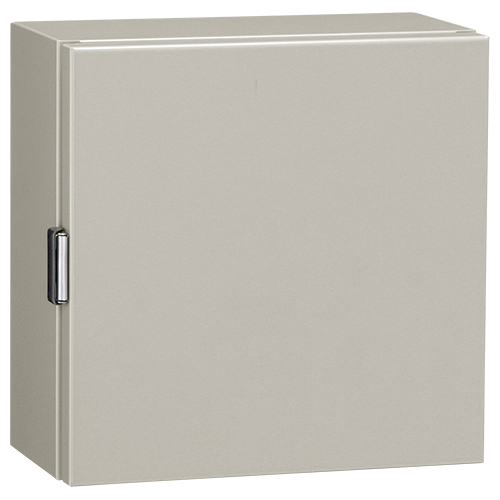

[CH-A] Industrial Automation Enclosure c/w Steel Plate

Small and simple enclosure with ease of use

Usage environment	Indoor
Ingress protection	IP4X
Color (coating)	Light Beige (5Y7/1)/Cream (2.5Y9/1)
Material	Steel
Thickness	1.6mm/1.2mm
Mounting plate	Steel (thickness 1.6mm)

Metric

Imperial

Depth: 120mm
Drawing	Part Number	Width	Height	Depth	Usable Depth	Mounting Plate (mm)	Weight
Drawing	CH12-152A	150	200	120	103	100 x 150	2.1
Drawing	CH12-152AC	150	200	120	103	100 x 150	2.1
Drawing	CH12-1525A	150	250	120	103	100 x 200	2.5
Drawing	CH12-1525AC	150	250	120	103	100 x 200	2.5
Drawing	CH12-153A	150	300	120	103	100 x 250	2.9
Drawing	CH12-153AC	150	300	120	103	100 x 250	2.9
Drawing	CH12-215A	200	150	120	103	150 x 100	2.1
Drawing	CH12-215AC	200	150	120	103	150 x 100	2.1
Drawing	CH12-22A	200	200	120	103	150 x 150	2.6
Drawing	CH12-22AC	200	200	120	103	150 x 150	2.6
Drawing	CH12-225A	200	250	120	103	150 x 200	3.1
Drawing	CH12-225AC	200	250	120	103	150 x 200	3.1
Drawing	CH12-23A	200	300	120	103	150 x 250	3.6
Drawing	CH12-23AC	200	300	120	103	150 x 250	3.6
Drawing	CH12-24A	200	400	120	103	150 x 350	4.5
Drawing	CH12-24AC	200	400	120	103	150 x 350	4.5
Drawing	CH12-252A	250	200	120	103	200 x 150	3
Drawing	CH12-252AC	250	200	120	103	200 x 150	3
Drawing	CH12-2525A	250	250	120	103	200 x 200	3.6
Drawing	CH12-2525AC	250	250	120	103	200 x 200	3.6
Drawing	CH12-253A	250	300	120	103	200 x 250	4.2
Drawing	CH12-253AC	250	300	120	103	200 x 250	4.2
Drawing	CH12-32A	300	200	120	103	250 x 150	3.5
Drawing	CH12-32AC	300	200	120	103	250 x 150	3.5
Drawing	CH12-325A	300	250	120	103	250 x 200	4.2
Drawing	CH12-325AC	300	250	120	103	250 x 200	4.2
Drawing	CH12-33A	300	300	120	103	250 x 250	4.9
Drawing	CH12-33AC	300	300	120	103	250 x 250	4.9
Drawing	CH12-34A	300	400	120	103	250 x 350	6.2
Drawing	CH12-34AC	300	400	120	103	250 x 350	6.2
Drawing	CH12-43A	400	300	120	103	350 x 250	6.2
Drawing	CH12-43AC	400	300	120	103	350 x 250	6.2
Drawing	CH12-44A	400	400	120	103	350 x 350	7.8
Drawing	CH12-44AC	400	400	120	103	350 x 350	7.8
Drawing	CH12-53A	500	300	120	103	450 x 250	7.4
Drawing	CH12-53AC	500	300	120	103	450 x 250	7.4

Depth: 160mm
Drawing	Part Number	Width	Height	Depth	Usable Depth	Mounting Plate (mm)	Weight
Drawing	CH16-152A	150	200	160	143	100 x 150	2.4
Drawing	CH16-152AC	150	200	160	143	100 x 150	2.4
Drawing	CH16-1525A	150	250	160	143	100 x 200	2.8
Drawing	CH16-1525AC	150	250	160	143	100 x 200	2.8
Drawing	CH16-153A	150	300	160	143	100 x 250	3.3
Drawing	CH16-153AC	150	300	160	143	100 x 250	3.3
Drawing	CH16-215A	200	150	160	143	150 x 100	2.4
Drawing	CH16-215AC	200	150	160	143	150 x 100	2.4
Drawing	CH16-22A	200	200	160	143	150 x 150	2.9
Drawing	CH16-22AC	200	200	160	143	150 x 150	2.9
Drawing	CH16-225A	200	250	160	143	150 x 200	3.4
Drawing	CH16-225AC	200	250	160	143	150 x 200	3.4
Drawing	CH16-23A	200	300	160	143	150 x 250	4
Drawing	CH16-23AC	200	300	160	143	150 x 250	4
Drawing	CH16-24A	200	400	160	143	150 x 350	5
Drawing	CH16-24AC	200	400	160	143	150 x 350	5
Drawing	CH16-25A	200	500	160	143	150 x 450	6
Drawing	CH16-25AC	200	500	160	143	150 x 450	6
Drawing	CH16-252A	250	200	160	143	200 x 150	3.4
Drawing	CH16-252AC	250	200	160	143	200 x 150	3.4
Drawing	CH16-2525A	250	250	160	143	200 x 200	4
Drawing	CH16-2525AC	250	250	160	143	200 x 200	4
Drawing	CH16-253A	250	300	160	143	200 x 250	4.7
Drawing	CH16-253AC	250	300	160	143	200 x 250	4.7
Drawing	CH16-2535A	250	350	160	143	200 x 300	5.3
Drawing	CH16-2535AC	250	350	160	143	200 x 300	5.3
Drawing	CH16-32A	300	200	160	143	250 x 150	3.9
Drawing	CH16-32AC	300	200	160	143	250 x 150	3.9
Drawing	CH16-325A	300	250	160	143	250 x 200	4.6
Drawing	CH16-325AC	300	250	160	143	250 x 200	4.6
Drawing	CH16-33A	300	300	160	143	250 x 250	5.3
Drawing	CH16-33AC	300	300	160	143	250 x 250	5.3
Drawing	CH16-335A	300	350	160	143	250 x 300	6
Drawing	CH16-335AC	300	350	160	143	250 x 300	6
Drawing	CH16-34A	300	400	160	143	250 x 350	6.7
Drawing	CH16-34AC	300	400	160	143	250 x 350	6.7
Drawing	CH16-35A	300	500	160	143	250 x 450	8.1
Drawing	CH16-35AC	300	500	160	143	250 x 450	8.1
Drawing	CH16-3525A	350	250	160	143	300 x 200	5.2
Drawing	CH16-3525AC	350	250	160	143	300 x 200	5.2
Drawing	CH16-353A	350	300	160	143	300 x 250	6
Drawing	CH16-353AC	350	300	160	143	300 x 250	6
Drawing	CH16-3535A	350	350	160	143	300 x 300	6.8
Drawing	CH16-3535AC	350	350	160	143	300 x 300	6.8
Drawing	CH16-43A	400	300	160	143	350 x 250	6.7
Drawing	CH16-43AC	400	300	160	143	350 x 250	6.7
Drawing	CH16-435A	400	350	160	143	350 x 300	7.5
Drawing	CH16-435AC	400	350	160	143	350 x 300	7.5
Drawing	CH16-44A	400	400	160	143	350 x 350	8.4
Drawing	CH16-44AC	400	400	160	143	350 x 350	8.4
Drawing	CH16-45A	400	500	160	143	350 x 450	10.1
Drawing	CH16-45AC	400	500	160	143	350 x 450	10.1
Drawing	CH16-4535A	450	350	160	143	400 x 300	8.3
Drawing	CH16-4535AC	450	350	160	143	400 x 300	8.3
Drawing	CH16-53A	500	300	160	143	450 x 250	8
Drawing	CH16-53AC	500	300	160	143	450 x 250	8
Drawing	CH16-54A	500	400	160	143	450 x 350	10.1
Drawing	CH16-54AC	500	400	160	143	450 x 350	10.1
Drawing	CH16-55A	500	500	160	143	450 x 450	12.2
Drawing	CH16-55AC	500	500	160	143	450 x 450	12.2
Drawing	CH16-65A	600	500	160	143	550 x 450	14.2
Drawing	CH16-65AC	600	500	160	143	550 x 450	14.2

Depth: 200mm
Drawing	Part Number	Width	Height	Depth	Usable Depth	Mounting Plate (mm)	Weight
Drawing	CH20-225A	200	250	200	183	150 x 200	3.7
Drawing	CH20-225AC	200	250	200	183	150 x 200	3.7
Drawing	CH20-23A	200	300	200	183	150 x 250	4.3
Drawing	CH20-23AC	200	300	200	183	150 x 250	4.3
Drawing	CH20-2525A	250	250	200	183	200 x 200	4.4
Drawing	CH20-2525AC	250	250	200	183	200 x 200	4.4
Drawing	CH20-253A	250	300	200	183	200 x 250	5.1
Drawing	CH20-253AC	250	300	200	183	200 x 250	5.1
Drawing	CH20-2535A	250	350	200	183	200 x 300	5.7
Drawing	CH20-2535AC	250	350	200	183	200 x 300	5.7
Drawing	CH20-325A	300	250	200	183	250 x 200	5
Drawing	CH20-325AC	300	250	200	183	250 x 200	5
Drawing	CH20-33A	300	300	200	183	250 x 250	5.8
Drawing	CH20-33AC	300	300	200	183	250 x 250	5.8
Drawing	CH20-335A	300	350	200	183	250 x 300	6.5
Drawing	CH20-335AC	300	350	200	183	250 x 300	6.5
Drawing	CH20-34A	300	400	200	183	250 x 350	7.2
Drawing	CH20-34AC	300	400	200	183	250 x 350	7.2
Drawing	CH20-35A	300	500	200	183	250 x 450	8.7
Drawing	CH20-35AC	300	500	200	183	250 x 450	8.7
Drawing	CH20-3525A	350	250	200	183	300 x 200	5.6
Drawing	CH20-3525AC	350	250	200	183	300 x 200	5.6
Drawing	CH20-353A	350	300	200	183	300 x 250	6.5
Drawing	CH20-353AC	350	300	200	183	300 x 250	6.5
Drawing	CH20-3535A	350	350	200	183	300 x 300	7.3
Drawing	CH20-3535AC	350	350	200	183	300 x 300	7.3
Drawing	CH20-43A	400	300	200	183	350 x 250	7.2
Drawing	CH20-43AC	400	300	200	183	350 x 250	7.2
Drawing	CH20-435A	400	350	200	183	350 x 300	8.1
Drawing	CH20-435AC	400	350	200	183	350 x 300	8.1
Drawing	CH20-44A	400	400	200	183	350 x 350	9
Drawing	CH20-44AC	400	400	200	183	350 x 350	9
Drawing	CH20-45A	400	500	200	183	350 x 450	10.8
Drawing	CH20-45AC	400	500	200	183	350 x 450	10.8
Drawing	CH20-46A	400	600	200	183	350 x 550	12.6
Drawing	CH20-46AC	400	600	200	183	350 x 550	12.6
Drawing	CH20-4535A	450	350	200	183	400 x 300	8.9
Drawing	CH20-4535AC	450	350	200	183	400 x 300	8.9
Drawing	CH20-53A	500	300	200	183	450 x 250	8.7
Drawing	CH20-53AC	500	300	200	183	450 x 250	8.7
Drawing	CH20-54A	500	400	200	183	450 x 350	10.8
Drawing	CH20-54AC	500	400	200	183	450 x 350	10.8
Drawing	CH20-55A	500	500	200	183	450 x 450	12.9
Drawing	CH20-55AC	500	500	200	183	450 x 450	12.9
Drawing	CH20-56A	500	600	200	183	450 x 550	15
Drawing	CH20-56AC	500	600	200	183	450 x 550	15
Drawing	CH20-64A	600	400	200	183	550 x 350	12.6
Drawing	CH20-64AC	600	400	200	183	550 x 350	12.6
Drawing	CH20-65A	600	500	200	183	550 x 450	15
Drawing	CH20-65AC	600	500	200	183	550 x 450	15
Drawing	CH20-66A	600	600	200	183	550 x 550	17.5
Drawing	CH20-66AC	600	600	200	183	550 x 550	17.5

Depth: 250mm
Drawing	Part Number	Width	Height	Depth	Usable Depth	Mounting Plate (mm)	Weight
Drawing	CH25-33A	300	300	250	233	250 x 250	6.4
Drawing	CH25-33AC	300	300	250	233	250 x 250	6.4
Drawing	CH25-34A	300	400	250	233	250 x 350	7.9
Drawing	CH25-34AC	300	400	250	233	250 x 350	7.9
Drawing	CH25-43A	400	300	250	233	350 x 250	7.9
Drawing	CH25-43AC	400	300	250	233	350 x 250	7.9
Drawing	CH25-44A	400	400	250	233	350 x 350	9.8
Drawing	CH25-44AC	400	400	250	233	350 x 350	9.8
Drawing	CH25-45A	400	500	250	233	350 x 450	11.6
Drawing	CH25-45AC	400	500	250	233	350 x 450	11.6
Drawing	CH25-54A	500	400	250	233	450 x 350	11.6
Drawing	CH25-54AC	500	400	250	233	450 x 350	11.6
Drawing	CH25-55A	500	500	250	233	450 x 450	13.9
Drawing	CH25-55AC	500	500	250	233	450 x 450	13.9
Drawing	CH25-56A	500	600	250	233	450 x 550	16.1
Drawing	CH25-56AC	500	600	250	233	450 x 550	16.1
Drawing	CH25-65A	600	500	250	233	550 x 450	16.1
Drawing	CH25-65AC	600	500	250	233	550 x 450	16.1
Drawing	CH25-66A	600	600	250	233	550 x 550	18.6
Drawing	CH25-66AC	600	600	250	233	550 x 550	18.6
