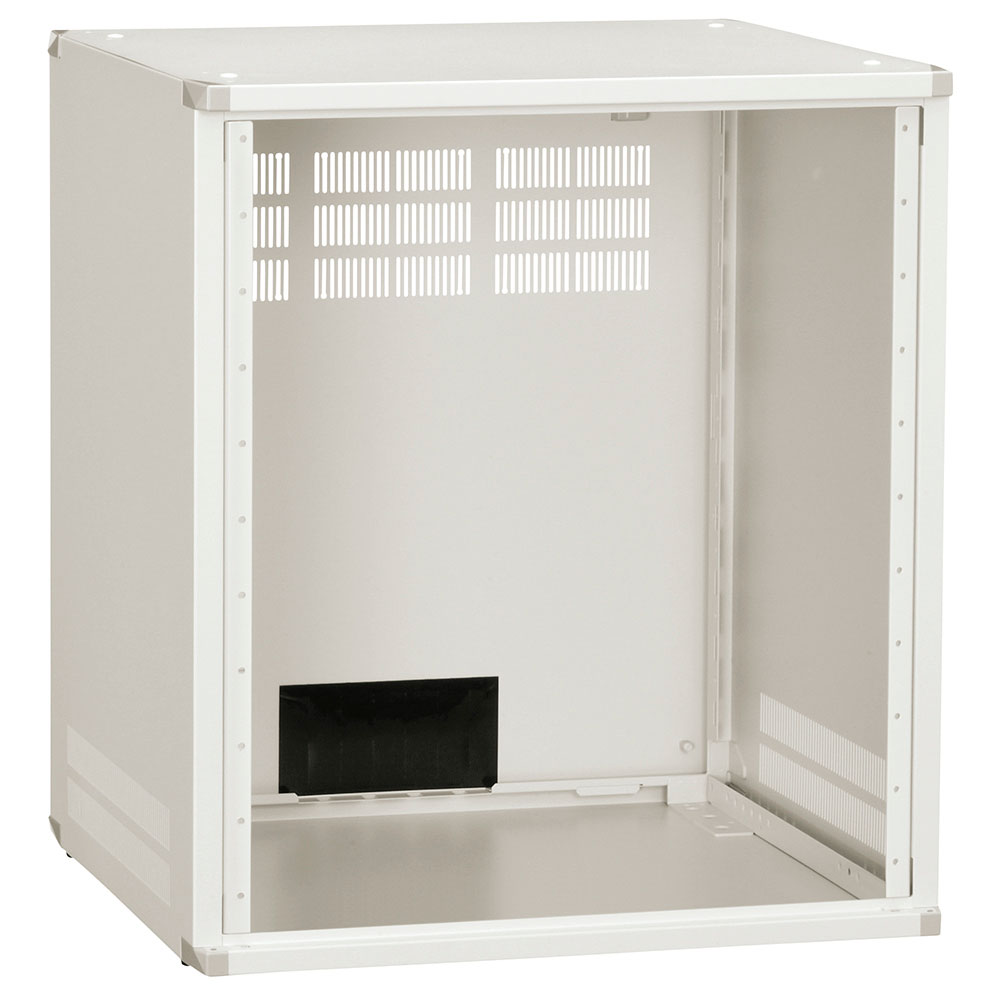

[FVKN-J] Economical Door less type (JIS standard)
![[FVKN-J] Economical Door less type (JIS standard)](../../../uploads/FVKN50-5306J.jpg)
Lightweight, simple and without door (JIS standard)
Color (coating) |
Pale White (10YR8.5/0.5) |
|---|---|
Standard |
JIS |
Material |
Steel |
Load Limit |
100kg |
Thickness |
Body: 0.8, 2.3mm Side Panel, Back Panel: 0.8mm |
| Drawing | Part No. | Width | Height | Depth | Weight | Installation Height / JIS |
|---|---|---|---|---|---|---|
| Drawing | FVKN40-5302J | 530 | 200 | 400 | 7 | 3H |
| Drawing | FVKN40-5303J | 530 | 300 | 400 | 8 | 5H |
| Drawing | FVKN40-5304J | 530 | 400 | 400 | 9 | 7H |
| Drawing | FVKN40-5305J | 530 | 500 | 400 | 10 | 9H |
| Drawing | FVKN40-5306J | 530 | 600 | 400 | 11 | 11H |
| Drawing | FVKN40-5307J | 530 | 700 | 400 | 12 | 13H |
| Drawing | FVKN40-5308J | 530 | 800 | 400 | 13 | 15H |
| Drawing | FVKN40-5309J | 530 | 900 | 400 | 14 | 17H |
| Drawing | FVKN40-5310J | 530 | 1000 | 400 | 15 | 19H |
