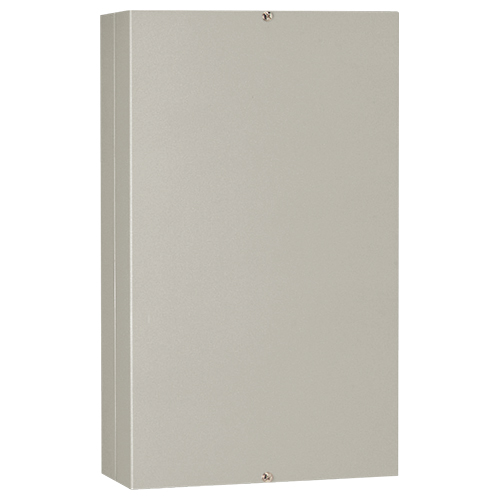

Terminal box c/w steel mounting plate

Usage environment	Indoor
Ingress protection	IP3XD
Color (coating)	Light Beige (5Y7/1)
Material	Steel
Thickness	1.2mm
Mounting plate	Steel (thickness 1.6mm)

Metric

Imperial

Depth: 80mm
Drawing	Part Number	Width	Height	Depth	Usable Depth	Mounting Plate (mm)	Weight
Drawing	TE8-11	100	100	80	66	90 x 80	0.6
Drawing	TE8-12	100	200	80	66	90 x 180	1.1
Drawing	TE8-13	100	300	80	66	90 x 280	1.6
Drawing	TE8-14	100	400	80	66	90 x 380	2.1
Drawing	TE8-22	200	200	80	66	190 x 180	1.9
Drawing	TE8-23	200	300	80	66	190 x 280	2.7
Drawing	TE8-24	200	400	80	66	190 x 380	3.4
Drawing	TE8-33	300	300	80	66	290 x 280	3.7
Drawing	TE8-34	300	400	80	66	290 x 380	4.8
Drawing	TE8-35	300	500	80	66	290 x 480	5.9

Depth: 120mm
Drawing	Part Number	Width	Height	Depth	Usable Depth	Mounting Plate (mm)	Weight
Drawing	TE12-11	100	100	120	106	90 x 80	0.8
Drawing	TE12-12	100	200	120	106	90 x 180	1.3
Drawing	TE12-13	100	300	120	106	90 x 280	1.9
Drawing	TE12-14	100	400	120	106	90 x 380	2.4
Drawing	TE12-22	200	200	120	106	190 x 180	2.2
Drawing	TE12-23	200	300	120	106	190 x 280	3.1
Drawing	TE12-24	200	400	120	106	190 x 380	3.9
Drawing	TE12-33	300	300	120	106	290 x 280	4.2
Drawing	TE12-34	300	400	120	106	290 x 380	5.4
Drawing	TE12-35	300	500	120	106	290 x 480	6.5
